Why Your PV System Can’t Do Without a High-Performance Inverter?

Ever wondered why some solar systems outperform others despite similar panels? The secret often lies in the inverter—the unsung hero of PV efficiency.

A high-performance inverter maximizes energy harvest, ensures grid safety, and protects your system from failures, making it indispensable for optimal solar power generation and ROI.

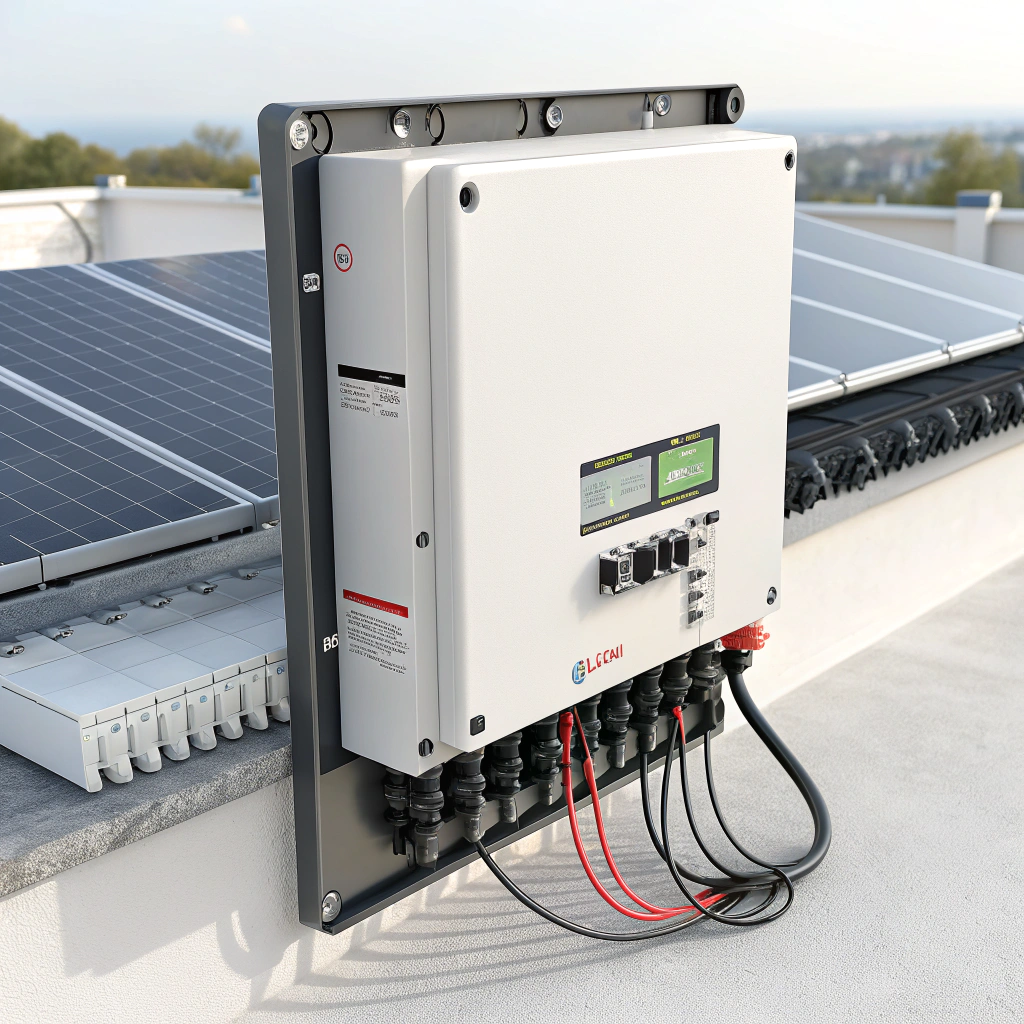

Solar Inverter in Action

Think of your inverter as the brain of your solar system. While panels capture sunlight, it's the inverter that converts this raw energy into usable electricity. Without it, even the best panels are rendered ineffective. But what makes an inverter truly high-performance? Let’s dive into the key features that set top-tier inverters apart.

MPPT (Maximum Power Point Tracking): More Power Generation Means More Profit?

Ever noticed how solar panels lose efficiency under shading or temperature changes? MPPT is the tech that keeps your system running at peak performance.

MPPT dynamically adjusts voltage and current to extract maximum power from panels, boosting energy yield by up to 30% compared to basic inverters, especially in variable weather conditions.

MPPT Technology Visualization

How MPPT Works: Beyond the Basics

• Real-Time Optimization: Unlike fixed-ratio converters, MPPT inverters continuously scan for the ideal "sweet spot" (Vmp/Imp) to pull the most power. It’s like having a GPS that recalculates your route the moment traffic changes.
• Shading Mitigation: If one panel is shaded, MPPT isolates it to prevent the "Christmas light effect" (where one faulty bulb dims the whole string). This can recover 15-25% of lost output [1].
• Temperature Compensation: Solar panels lose ~0.5% efficiency per °C rise. MPPT compensates by adjusting voltage curves—critical in hot climates.

Scenario	Standard Inverter Output	MPPT Inverter Output	Gain
Partial shading	2.8 kW	3.4 kW	+21%
Morning/evening light	1.2 kW	1.7 kW	+42%

Financial Impact

For a 10kW system:

• Without MPPT: ~40kWh/day (national average)
• With MPPT: 52kWh/day (+12kWh)
• At $0.15/kWh, that’s $657 extra annual revenue—often paying for the inverter upgrade in <3 years.

MPPT increases energy yield in partial shading.
✅ True: MPPT can recover up to 25% of power lost to shading by optimizing per-panel performance.

All inverters have identical MPPT efficiency.
❌ False: MPPT algorithms vary—premium models (e.g., SolarEdge, SMA) achieve 99.9% efficiency vs. 95% in budget options.

Anti-Islanding Function: Complies with International Standards to Ensure Safety?

What happens when the grid fails but your solar system keeps pumping power? Without anti-islanding, it becomes a deadly hazard for utility workers.

Anti-islanding instantly disconnects your PV system during grid outages, preventing backfeed that could electrocute linemen and ensuring compliance with UL1741/IEEE 1547 safety standards.

Grid Safety Mechanism

The Life-Saving Tech Behind Anti-Islanding

1. Frequency/Voltage Shift Detection: Inverters constantly monitor grid signals. A deviation beyond ±0.5Hz or ±10% voltage triggers shutdown within 2 seconds [2].
2. Active Islanding Prevention: Some inverters inject small disturbances to "test" grid stability—like tapping a frozen lake to check for cracks.
3. Certification Matters: Look for UL1741-SA certification, now mandated in the U.S. for grid support during voltage/frequency fluctuations.

Why Compliance Isn’t Optional

• Legal Liability: Non-compliant systems face fines up to $25,000 (per NEC 690.12).
• Insurance Risks: Most policies void coverage for non-UL1741 systems.
• System Longevity: Grid-tied inverters without anti-islanding often fail surge protection tests.

Table: Anti-Islanding Response Times by Standard

Standard	Max Shutdown Time	Voltage Threshold
IEEE 1547-2018	2 seconds	±10% nominal
VDE-AR-N 4105	0.2 seconds	±15% nominal

Anti-islanding protects utility workers.
✅ True: Rapid shutdown prevents live voltages in de-energized grid lines.

Older inverters don’t need anti-islanding updates.
❌ False: Pre-2017 inverters may lack modern protections; retrofits are often required.

Overload Protection: Enables All-Weather Operation and Reduces Downtime?

Imagine your inverter frying during a heatwave—overload protection is the "circuit breaker" that prevents this disaster.

Overload protection safeguards inverters from voltage spikes and excessive loads, enabling reliable 24/7 operation while reducing failure-related downtime by up to 80%.

Thermal Management in Action

How Overload Protection Works

• Dynamic Power Rating: Premium inverters (e.g., Fronius Symo) can temporarily handle 110-150% of rated power—crucial for cloudy-to-sunny transitions.
• Thermal Throttling: When internal temps hit 60°C, the inverter reduces output by 5%/°C instead of shutting down.
• Surge Suppression: Integrated varistors absorb lightning strikes up to 6kV (IEC 61643-11 compliant).

Cost of Poor Protection

• Repair Expenses: A single surge event can damage $2,000+ in components.
• Lost Revenue: Every day of downtime costs a 10kW system ~$40 in missed generation.

Table: Overload Protection Features Comparison

Feature	Basic Inverter	High-Performance Inverter
Operating Temp Range	-25°C to 50°C	-40°C to 60°C
Surge Protection	3kA	10kA
Overload Capacity	100% rated power	150% for 30 minutes

Inverters can safely exceed rated power temporarily.
✅ True: Quality units handle 110-150% overloads for short durations.

All inverters have equal surge protection.
❌ False: Protection levels vary from 3kA (budget) to 10kA (premium).

Conclusion

A high-performance inverter isn’t just an accessory—it’s the cornerstone of a safe, efficient, and profitable PV system, delivering ROI through MPPT optimization, safety compliance, and rugged reliability.

---

References

1. NREL Study on MPPT Efficiency Gains
2. IEEE 1547-2018 Anti-Islanding Standards
3. IEC 61643-11 Surge Protection Guidelines
