With limited space, how to build an efficient solar photovoltaic power generation system?
•
With limited space, how to build an efficient solar photovoltaic power generation system?
Struggling with rooftop space but want solar power? Smart design and component selection can maximize energy output even in tight areas.
To build an efficient solar system in limited space, use high-efficiency modules[^1], compact inverters[^2], and optimized layouts while considering energy storage and smart grid integration for maximum output.
While space constraints pose challenges, modern solar technology offers surprising solutions. Let's explore how to squeeze every watt from your restricted installation area.
Photovoltaic design ideas and key considerations for small-area rooftops?

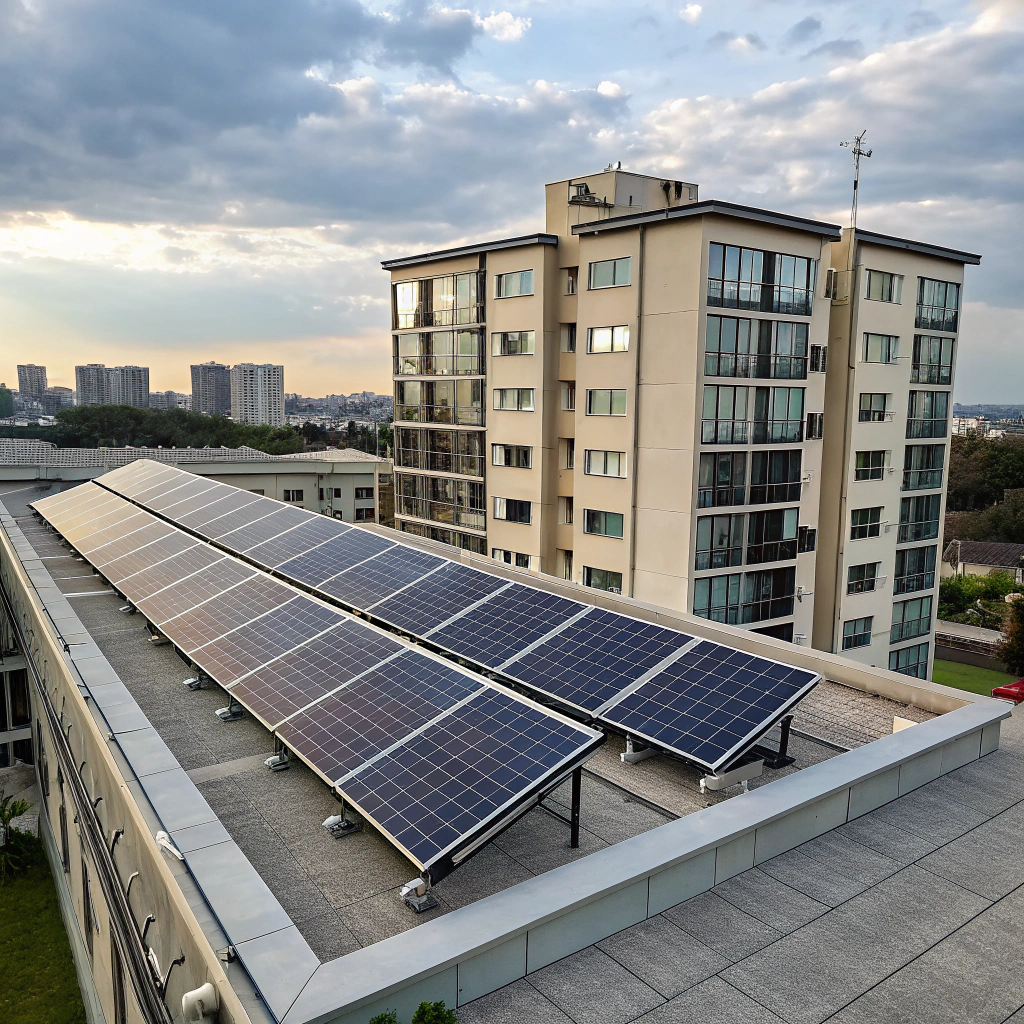

What if your small roof could generate big power? Strategic design transforms limited space into an energy powerhouse.
For small rooftops, prioritize high-wattage panels in portrait orientation, optimized tilt angles, and shade-free zones while using micro-inverters[^3] to mitigate space-related efficiency losses (typically 5-15% better yield).
Maximizing Space Utilization
Key strategies for tight areas:
- Panel Selection: 400W+ monocrystalline panels (21-23% efficiency)
- Layout Patterns:
- Portrait orientation (saves 10-15% space vs landscape)
- Inter-row spacing minimized (0.5-1m for 30° tilt)
- Structural Factors:
- Weight distribution (≤25kg/m² for most roofs)
- Wind load considerations
| Design Factor | Small Roof Solution | Space Saving |
|---|---|---|
| Panel Type | High-efficiency mono | 15-20% smaller footprint |
| Mounting | Flush-mounted | Zero ground clearance |
| Inverter | Micro-inverters | No central unit space |
Critical Installation Considerations
- Shade Analysis: Use solar pathfinder tools
- Roof Penetrations: Minimize with ballasted systems
- Maintenance Access: 0.6m minimum walkways
Analysis of the advantages of high-efficiency modules[^1] and compact inverters[^2]?
Can premium components justify their cost in space-constrained installations? The numbers reveal a compelling case.
High-efficiency modules (22-24%) produce 30-50% more power per sqm than standard panels, while micro-inverters[^3] eliminate single-point failures and optimize each panel's output in partial shade conditions.
Module Efficiency Comparison
Recent technological advancements:
- PERC Cells[^4]: +1% absolute efficiency
- Half-cut Cells: Reduce resistance losses
- Bifacial Models: 5-20% bonus yield (with reflective surfaces)
Efficiency vs Space Savings:
- Standard poly (17%): 6.5 sqm/kW
- Premium mono (22%): 4.8 sqm/kW
- TOPCon (24%): 4.2 sqm/kW
Inverter Solutions for Small Spaces
- Micro-inverters: Panel-level optimization
- DC Optimizers: 99% MPPT efficiency
- Hybrid Models: Built-in battery connectivity
Energy storage and grid connection: flexible solutions in limited space?
Where to put batteries when every inch counts? Modern energy storage fits surprisingly small footprints.
For space-constrained systems, wall-mounted lithium batteries[^5] (like Tesla Powerwall 2 at 0.8m²) and virtual power plant[^6] participation provide storage solutions without sacrificing precious installation area.
Space-Efficient Storage Options
Battery Technologies:
- Lithium-ion: 150-200Wh/kg density
- Stackable Modules: Vertical expansion
- AC-Coupled: Flexible placement
Grid Integration Strategies:
- Net Metering: Acts as "virtual storage"
- Time-of-Use Optimization: Software-based
- Export Limiting: Avoid infrastructure upgrades
| Solution | Space Required | Capacity |
|---|---|---|
| Powerwall 2 | 0.8m² wall | 13.5kWh |
| LG RESU | 0.5m² floor | 9.8kWh |
| Virtual Plant | Cloud-based | Scalable |
Smart Energy Management
- Load Shifting: 20-30% self-sufficiency boost
- Peak Shaving: Reduce demand charges
- Hybrid Inverters: Single-unit solutions
Conclusion
Even small spaces can host high-performance solar systems through optimized designs, premium components, and smart energy management, delivering 80-90% of large-system yields per installed watt.
