What is the working principle of solar street light?

Want reliable night lighting without hefty electricity bills? Solar street lights offer an eco-friendly solution with surprising simplicity.

Solar street lights work by converting sunlight into electricity through solar panels during the day, storing energy in batteries, and using this stored power to illuminate LEDs at night, all controlled by an intelligent system.

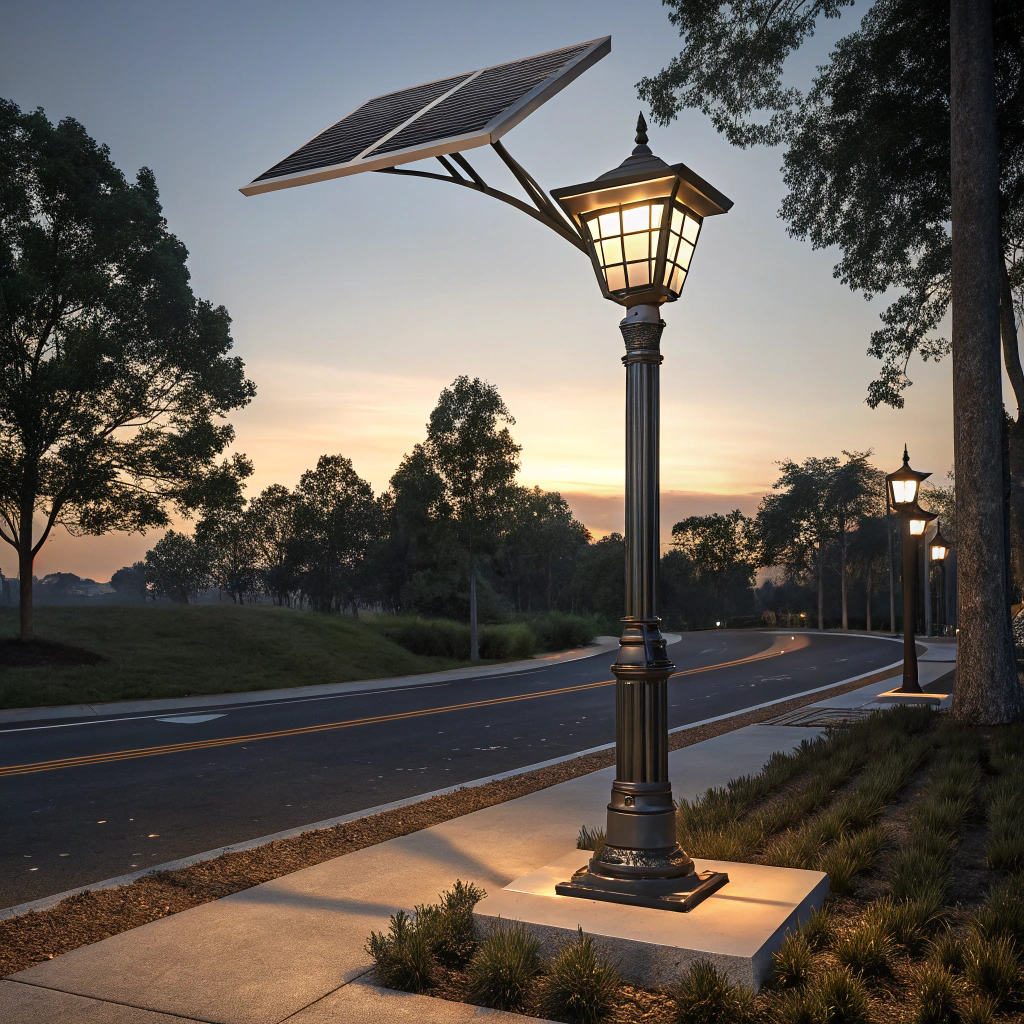

Solar street light system overview

While the basic concept seems straightforward, there's more to solar street lighting than meets the eye. Let's break down the key components and their interactions to fully understand how these sustainable lights operate.

How to choose the right wattage of solar street light according to lighting needs?

Struggling to balance brightness with energy efficiency in your solar lighting project?

Choose solar street light wattage based on road width and required illumination level: 20-30W for residential streets (5-8m width), 30-50W for collector roads (8-12m), and 50-100W for arterial roads (12m+), with additional factors like nightly operation hours and weather conditions.

![Solar street light illumination comparison chart]

Wattage vs. Illumination Levels

Understanding Lighting Requirements

Solar street light wattage selection requires careful consideration of multiple factors:

1. Road Classification:

   • Residential streets: 10-15 lux
   • Collector roads: 15-20 lux
   • Arterial roads: 20-30 lux

2. Lumens Calculation:
   Use formula: Lumens = Area (sqm) × Lux Requirement × Maintenance Factor (typically 1.5)

3. Location Factors:

   • Sunlight availability (peak sun hours)
   • Weather patterns (cloudy days)
   • Temperature extremes

Application	Recommended Wattage	Coverage Area	Height
Pathway	20W	5-7m diameter	3-4m
Residential	30W	8-10m diameter	4年6m
Highway	50-100W	12-15m diameter	6-8m

What are the types of batteries for solar street lights? What are the advantages and disadvantages of each?

Battery choice can make or break your solar street light performance - are you using the right type?

Solar street lights primarily use three battery types: Lead-Acid (cheapest but short lifespan), Gel (maintenance-free, moderate cost), and Lithium-ion (lightest, longest lifespan but most expensive), each with distinct advantages for different applications.

![Comparison of solar battery types]

Solar Battery Technologies

Deep Dive into Battery Options

1. Lead-Acid Batteries

   • Pros:
     • Lowest upfront cost ($100-$200)
     • Readily available
   • Cons:
     • 2-3 year lifespan
     • Requires maintenance
     • Heavy (15-30kg)

2. Gel Batteries

   • Pros:
     • Maintenance-free
     • Better deep-cycle performance
     • 4-5 year lifespan
   • Cons:
     • 30-40% more expensive than lead-acid
     • Sensitive to overcharging

3. Lithium-ion Batteries

   • Pros:
     • 8-10 year lifespan
     • Lightweight (3-5kg)
     • High DoD (80-90%)
   • Cons:
     3-4x cost of lead-acid
     Requires BMS protection

Battery chemistry significantly impacts total cost of ownership - lithium often proves cheaper long-term despite higher initial cost.

What is the role of controller in solar street light?

That small box on your solar light does big work - are you utilizing its full potential?

The solar controller manages battery charging/discharging, prevents overcharge/over-discharge damage, enables smart operation modes (motion sensing, dimming), and provides system monitoring, essentially serving as the "brain" of solar street lighting systems.

![Solar controller internal components]

Smart Solar Controller

Controller Functions Explained

Modern solar controllers perform these critical functions:

1. Charge Management:

   • PWM or MPPT charging algorithms
   • 3-stage charging (bulk/absorption/float)
   • Temperature compensation

2. Load Control:

   • Over-discharge protection (typically at 20-30% DoD)
   • Short-circuit protection
   • Reverse polarity protection

3. Smart Features:

   • Time control (6/8/10 hour operation)
   • Motion sensor activation
   • Dimming schedules (30% midnight, 100% when motion detected)
   • Remote monitoring via GSM/WiFi

Advanced controllers can improve system efficiency by 15-30% compared to basic models, making them worth the additional investment.

Conclusion

Solar street lights combine solar panels, batteries, LEDs and smart controllers to deliver efficient off-grid lighting, with proper component selection being crucial for optimal performance and longevity.
