How can energy storage cabinet systems be optimized for efficiency, scalability, and reliability in modern power applications?
Energy storage cabinet system integration[^1] hinges on voltage/capacity configuration[^2], EMS/BMS collaboration[^3], and parallel expansion design[^4] to deliver tailored, stable, and scalable solutions for diverse energy needs.

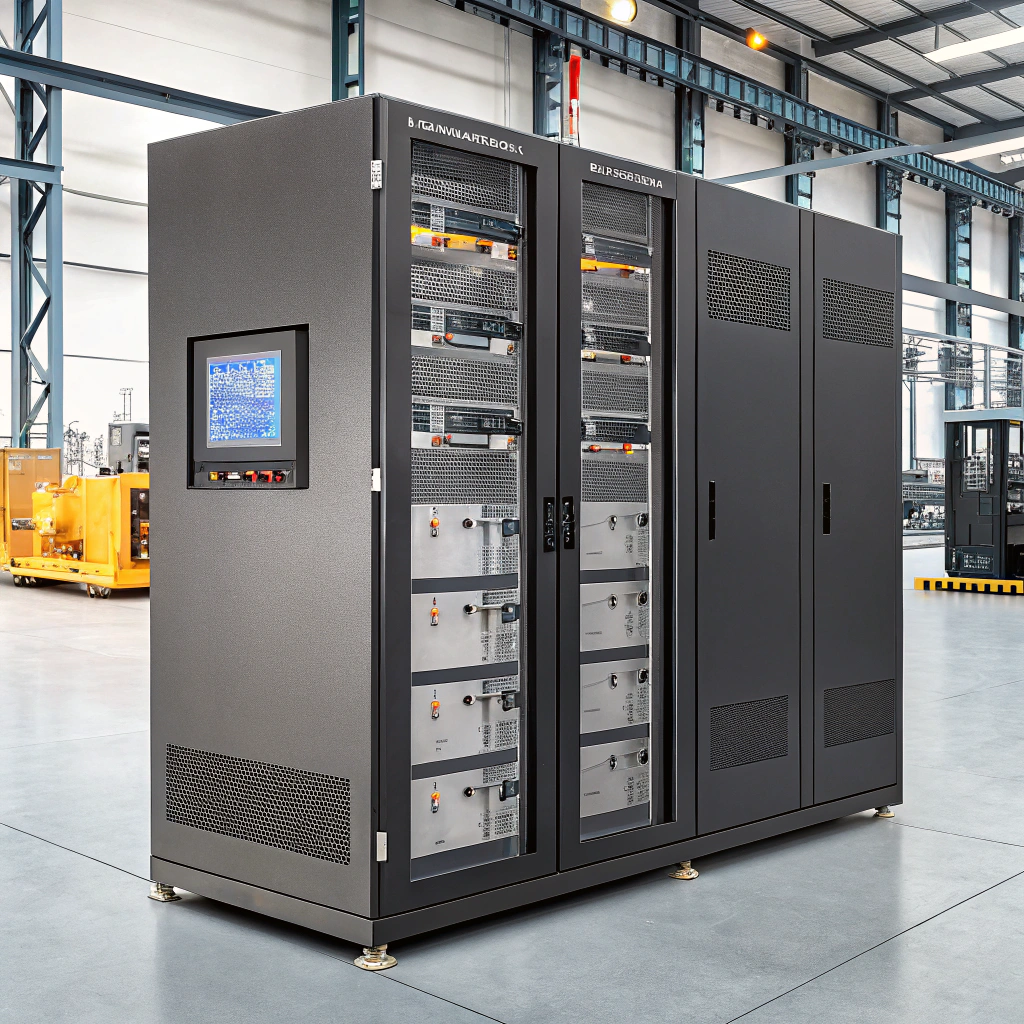

From grid stabilization to renewable energy buffering, energy storage cabinets are revolutionizing power management. But what makes their design truly effective? Let’s dissect the engineering principles that ensure seamless integration.
Voltage Level and Capacity Configuration: How to Match the Optimal Energy Storage Solution for Different Projects?
Ever struggled to align energy storage capacity with project demands? Under- or over-sizing can cripple efficiency.
Optimal voltage/capacity matching involves analyzing load profiles, peak shaving requirements, and project lifespan to select Li-ion, flow, or hybrid batteries that balance cost and performance.
Key Considerations for Voltage/Capacity Matching
-
Load Profile Analysis
- Peak Demand: Size batteries to cover 80–120% of peak loads.
- Duration: Short-duration (2–4h) vs. long-duration (>6h) needs dictate chemistry choice (e.g., Li-ion for frequency regulation, flow batteries for solar firming).
-
Voltage Tier Selection Application Typical Voltage Example Use Case Commercial 400–600V Retail peak shaving Industrial 600–1000V Factory UPS systems Utility-scale 1500V+ Grid ancillary services -
Degradation Mitigation
- Oversize by 15–20% to account for capacity fade over 10+ years.
- Use modular designs for incremental upgrades (e.g., adding 50kWh blocks).
Pro Tip: Pair with predictive analytics tools[^5] to dynamically adjust capacity based on real-time degradation data.
EMS and BMS Collaboration: Enabling Efficient Scheduling and Status Monitoring of Energy Storage Cabinets
What happens when energy management and battery control systems don’t communicate? Chaos.
EMS (Energy Management System) and BMS (Battery Management System) synergy enables real-time load forecasting, state-of-charge (SOC) balancing, and fault isolation, boosting efficiency by up to 30%.
Critical Integration Layers
-
Data Exchange Protocols
- BMS-to-EMS: SOC, temperature, and impedance data via CAN bus or Modbus TCP.
- Control Commands: Charge/discharge schedules from EMS to BMS.
-
Algorithm Synergy
- EMS: Prioritizes economic dispatch (e.g., arbitrage during high tariffs).
- BMS: Enforces safety limits (e.g., blocking discharges at <10% SOC).
-
Fault Handling Fault Type BMS Action EMS Response Cell Overvoltage Isolate module Reroute power Thermal Runaway Trigger cooling Shut down adjacent cabinets
Case Study: A solar+storage project in Germany reduced downtime by 40% through EMS/BMS predictive fault detection.
Parallel Connection and Capacity Expansion Design: Stability and Energy Management Strategies for Multi-Cabinet Systems
Can energy storage cabinets scale without compromising stability? Absolutely—with smart parallel design.
Parallel systems use master-slave control, dynamic impedance matching[^6], and decentralized PCS (Power Conversion Systems) to maintain stability during expansion, enabling seamless scaling from 100kWh to 10MWh+.
Scalability Engineering
-
Topology Options
- Centralized PCS: Lower cost but single point of failure.
- Distributed PCS: Higher redundancy, ideal for mission-critical apps.
-
Load Sharing Techniques
- Droop Control: Adjusts output based on cabinet SOC (e.g., ±5% variance allowed).
- Peer-to-Peer Communication: Cabinets self-balance via IoT edge computing.
-
Expansion Planning
- Phase upgrades using standardized busbars and connectors.
- Reserve 20% space for future cabinets during initial deployment.
Example: A microgrid in California scaled from 500kWh to 2MWh over 3 years by pre-wiring for parallel connections.
Conclusion
Energy storage cabinet integration thrives on precise voltage/capacity matching, EMS/BMS harmony, and scalable parallel architectures—key pillars for resilient, future-proof power systems.
