A Guide to Selecting Photovoltaic Power Generation Systems in Limited Spaces?
•
A Guide to Selecting Photovoltaic Power Generation Systems in Limited Spaces?
Struggling to fit solar panels in tight spaces? Discover how to maximize energy output even when square footage is limited.
For limited spaces, prioritize high-efficiency solar modules[^1] and modular designs that adapt to unconventional layouts, ensuring optimal energy production without requiring large surface areas.
Space constraints shouldn’t stop you from harnessing solar power. With the right strategies, even compact areas can become energy-generating assets. Let’s explore how.
How to Achieve High Productivity in Small Areas? Application Strategies for High-Efficiency Modules
What if your small roof could generate as much power as a larger one?
High-efficiency monocrystalline or bifacial modules[^2] produce more energy per square meter, making them ideal for space-constrained installations. Pair them with smart tracking systems[^3] to further boost output.
Key Considerations for High-Efficiency Modules
-
Module Type:
- Monocrystalline: 20–22% efficiency, best for small roofs.
- Bifacial: Captures light from both sides, adding 10–20% more yield.
-
Tracking Systems:
- Single-axis trackers increase output by 25–30%.
- Dual-axis trackers (ideal for ground mounts) add 30–45%.
-
Tilt and Orientation:
- Adjust angles seasonally to maximize exposure.
- Use tools like PVWatts to calculate optimal positioning.
| Strategy | Impact on Output |
|---|---|
| High-efficiency modules | +15–25% energy yield |
| Single-axis tracking | +25–30% energy yield |
| Optimal tilt | +5–10% seasonal adjustment |
Pro Tip: Thin-film panels (flexible and lightweight) can fit curved or irregular surfaces where rigid panels fail.
Modular Design: Flexibly Adapting to Different Spatial Conditions
Can’t install a traditional array? Think modular.
Modular solar systems use scalable, customizable components (e.g., micro-inverters, plug-and-play panels) to fit unconventional spaces like balconies, carports, or vertical facades.
Breaking Down Modular Solutions
-
Micro-Inverters vs. String Inverters:
- Micro-inverters optimize each panel’s output, ideal for shaded or uneven layouts.
- String inverters are cheaper but less flexible.
-

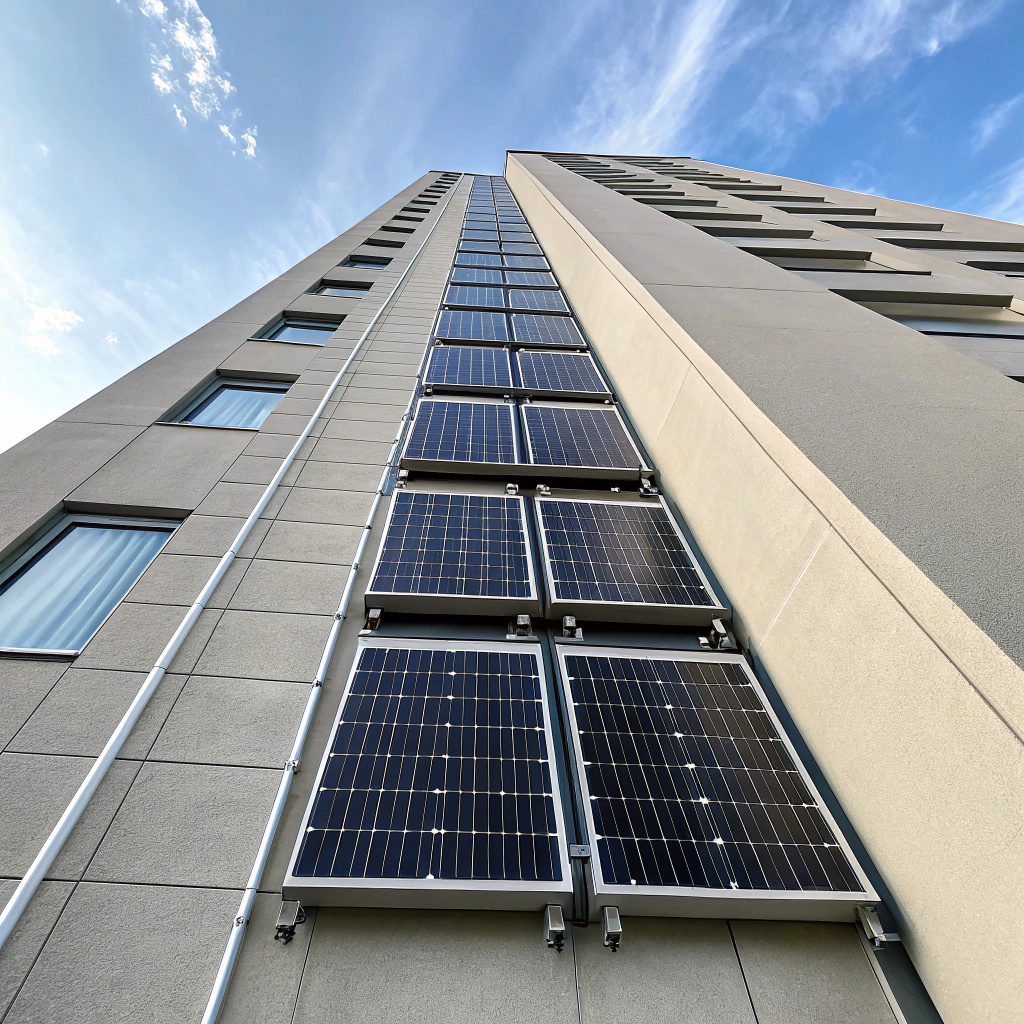

Vertical Solar Installations:
- Perfect for narrow walls or fences.
- 60–70% of horizontal system output but utilizes unused space.
-
Balcony Solar Kits:
- Plug-and-play systems (300–600W) for urban renters.
- No structural changes needed.
Case Study: A Berlin apartment complex doubled its solar capacity by adding vertical panels to stairwell exteriors.
Balancing Costs and Benefits: Economic Analysis of Installations in Limited Spaces
Is small-scale solar worth the investment?
Limited-space systems often have higher upfront costs per watt but achieve faster payback through energy savings and incentives (e.g., net metering[^4], tax credits).
Cost vs. ROI Breakdown
| Factor | Cost Impact | ROI Booster |
|---|---|---|
| High-efficiency panels | +$0.10–$0.30/Watt | +20% lifetime energy yield |
| Tracking systems | +$0.50–$1.00/Watt | +30% annual output |
| Modular components | +15–20% installation cost | +Flexibility for expansion |
Key Metrics:
- Payback period: 5–8 years (with incentives).
- Lifetime savings: $10,000–$20,000 for a 5kW system.
Incentive Alert: Check local programs—some cities offer grants for space-constrained installations.
Conclusion
Even in tight spaces, solar is viable. Combine high-efficiency tech, modular designs, and smart financing to turn constraints into opportunities.
